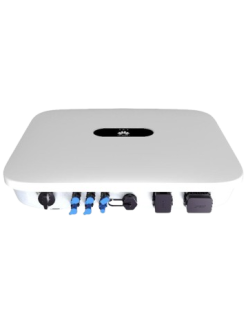

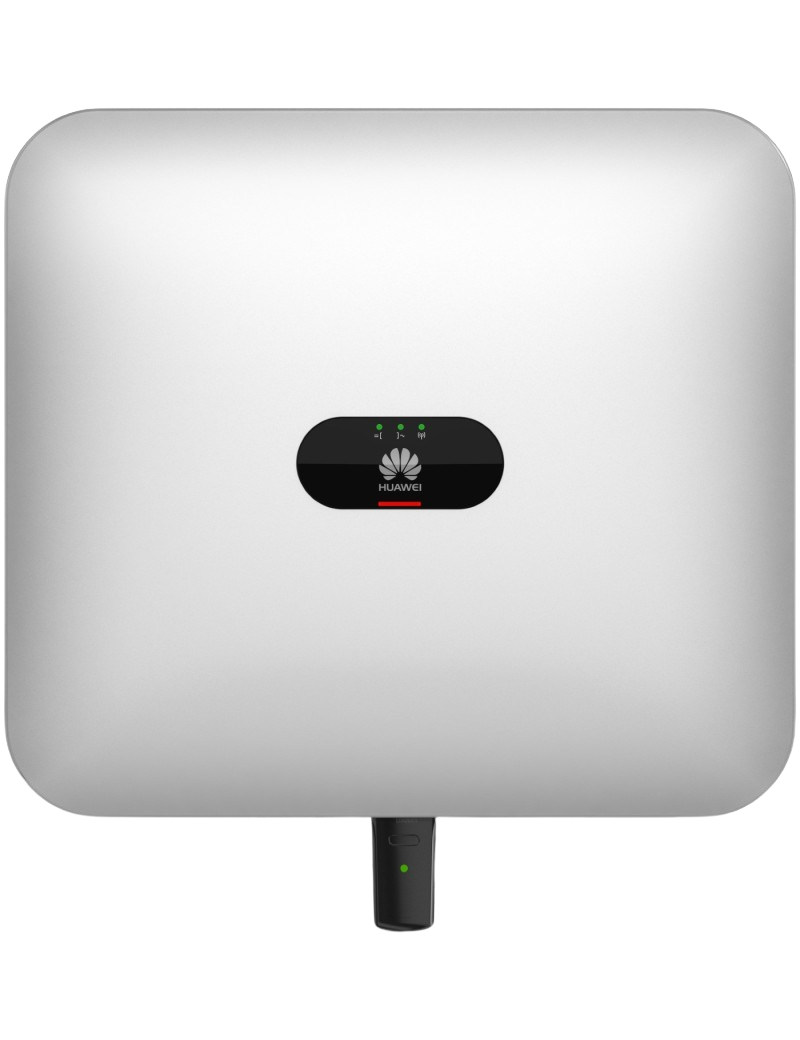

Huawei SUN2000-3KTL-M1 HC – Intelligent hybrid inverter for maximum efficiency

The Huawei SUN2000-3KTL-M1 HC is a high-performance hybrid inverter for residential photovoltaic systems up to 3 kW. Equipped with state-of-the-art technology, it offers high energy yield, intelligent control, and seamless integration with battery storage – ideal for homeowners looking to maximize their energy efficiency.

Main features

• Hybrid functionality: Direct integration of high-voltage batteries possible (e.g. Huawei LUNA2000) for maximum self-consumption optimization.

• 2 MPP trackers: Flexible PV design with optimal performance even with partially shaded modules or different roof orientations.

• Safety included: Arc detection (AFCI) reliably protects your system from electrical risks.

• Smart Monitoring: Monitoring via app (FusionSolar) – with real-time data, remote maintenance and intelligent fault diagnosis.

• High efficiency: Maximum efficiency of up to 98.4% ensures minimal losses.

• Quiet and compact: Fanless design for quiet operation – ideal for installation in residential buildings.

Technical data (excerpt)

Feature Value

Rated power AC 3,000 W

Max. input voltage DC 1,100 V

MPP Tracker 2

Max. input current per tracker 12.5 A

High-voltage battery connector , compatible with Huawei LUNA2000

Communication WLAN, Ethernet, RS485

Protection class IP65

Dimensions (W × H × D) approx. 365 × 365 × 156 mm

Weight approx. 12.3 kg
